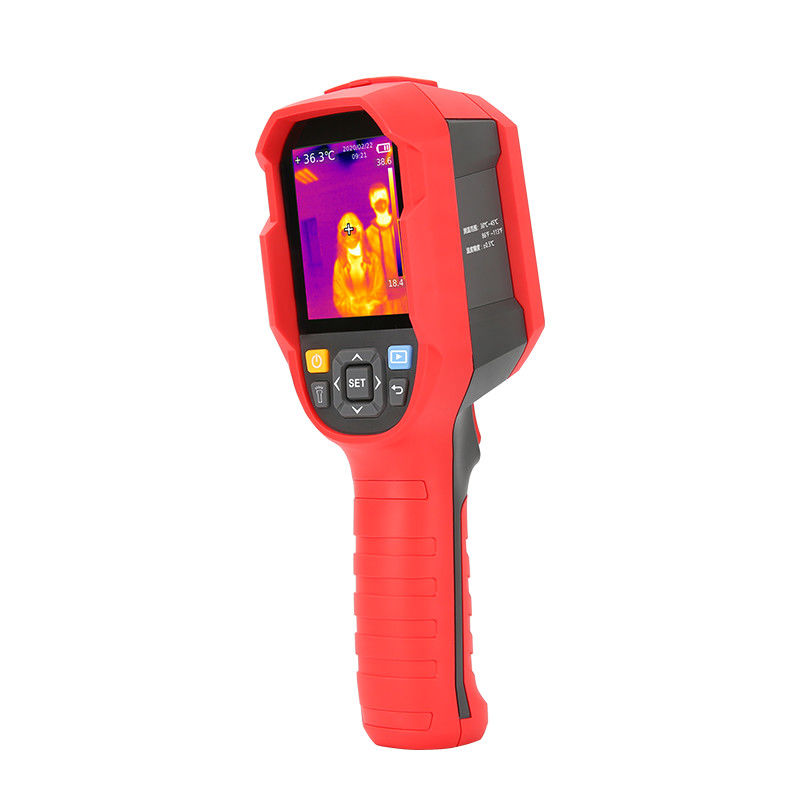

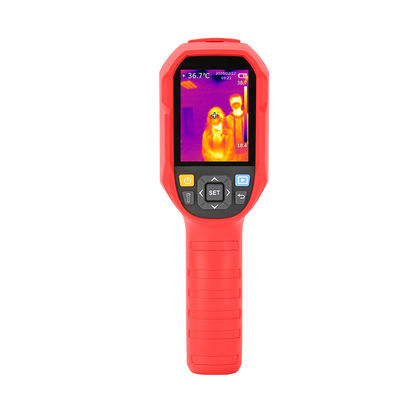

TFT Display Real Time Photo Transmission PC Connection UTi165K Thermal Imager

Name: TFT Display Real Time Photo Transmission PC Connection UTi165K Thermal Imager
Brand: UNIFORM
SKU: AUTC-Uti165K
Rating: 4.6 (135 reviews)

Large Image : TFT Display Real Time Photo Transmission PC Connection UTi165K Thermal Imager

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFORM
Certification:	CE, FDA, CSA, DROP BALL TEST
Model Number:	AUTC-Uti165K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton box, 50pcs/ctn
Delivery Time:	30-35 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000PCS/Month

Contact Now

Detailed Product Description

Display Screen:	2.8-inch Full-view TFT Display	Temperature Measurement Range:	(-4°F To 842°F)
Measurement Accuracy:	±2℃/±2% (Greater Than 300℃ Accuracy Is ± 5%)	Infrared Image Resolution:	160×120
Service:	OEM / ODM	HS Code:	9031499090
High Light:	PC connection UTi165K thermal imager , TFT display UTi165K thermal imager , UTi165K thermographic camera system

UTi165K Thermal Imager Infrared Imaging Camera Connect To Computer Monitor Screen Real Time Photo Transmission

Setting function

1. Full screen: click the button and the work interface will be displayed in full screen. Press ESC key on the computer keyboard to exit full screen display.Designated area for detection: hold down the left mouse key and dry the mouse box to select the certain region. The temperature of the selected area is detected.

2. Color palette: five types of color palettes such as white heat, black heat, rainbow, and iron red and high contrast rainbow are available for selection of users. (The selection of proper color palette can show the details of target object in a better manner.)The rainbow, iron red and high contrast rainbow color palette focuses on display of color. The color palettes are very suitable for the condition of high heat contrast and are used to increase the color contrast between high temperature and low temperature. But the white heat and black heat color palettes provides even linear color. )

3. Automatic display of temperature scope: after the column “automatic display of temperature scope” is checked, the software will adjust the picture according to the highest temperature and lowest temperature of the current image.

4. Display of temperature scope: input certain temperature scope in the column manually and click “change” button. The software will adjust picture display according to temperature scope. The area with temperature higher or lower than the temperature scope is displayed

black.

5. Alarm temperature scope: input certain alarm scope in the column manually and click “change” button. If the human face temperature in the picture is within the temperature scope, the thermal imaging picture will become red and the software will alarm.

6. Open/close the alarm: click the button to open and close the alarm.

7. Change: after setting “display temperature scope” and “alarm temperature scope”, click the button and save.

8. Temperature measurement: check “temperature measurement” column, the picture displays the cursor at the central point and the temperature value.

Performance index

item	value
Place of Origin	China
	Guangdong
Brand Name	UNIT
Model Number	UTi165K
Warranty	1 Year
Certification	ce, FCC
Special Features	Temperature Measurement, Thermal Imager
Sensor	CMOS
Function	Thermal image
Video Compression Format	H.264
Data Storage Options	Micro SD card, SD Card
Application	Indoor
Customized support	Customized logo
Model Number:	UTI165K
Product name	Thermal Imager
Temperature range	30ºC~45ºC
Power Supply	Lithium Battery

TFT Display Real Time Photo Transmission PC Connection UTi165K Thermal Imager 0

Certifications

Exhibition

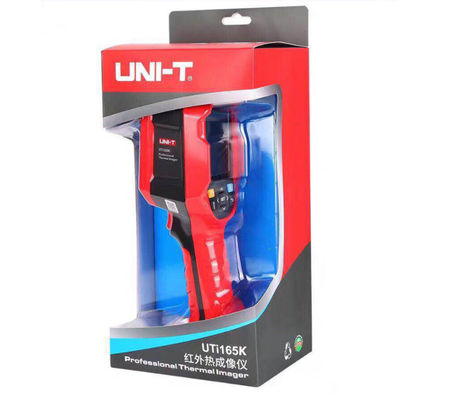

Packing & Delivery
