Product Details:
Payment & Shipping Terms:
|
| Material: | TPU | Color: | Black |
|---|---|---|---|
| Net Weight: | 510g | Power Supply: | 1 CR123 Batteries |
| Service: | OEM / ODM | HS Code: | 9004909000 |
| High Light: | TS450 Thermal Rifle Scope,TS435 Thermal Rifle Scope,TS450 Thermal Rifle Vision System |
||

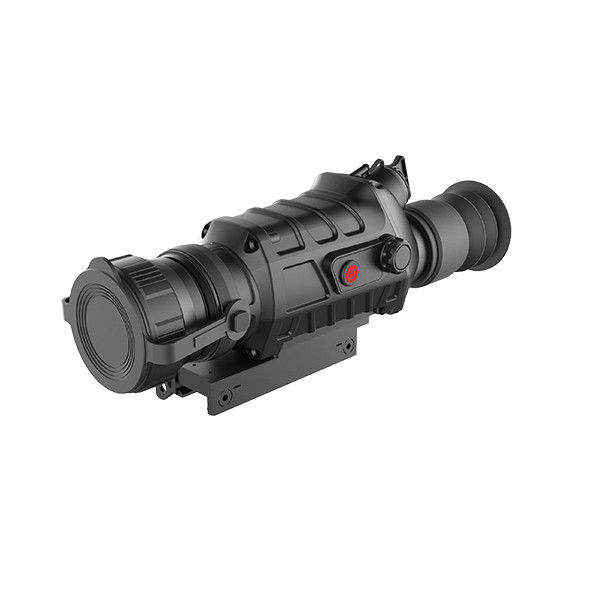

TS425 TS435 TS450 Thermal Rifle Scope Personal Vision System Outdoor Recreation
Ergonomic design,easy operation
· Single hand-operation with a roller button
· Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
High Quality Image
· Excellent imaging performance, with 17μm@400x300 TEC metal-encapsulated thermal detector for longer detection range and crisper images.
· 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
· 1024x768 resolution AMOLED eyepieces, colorful and detailed images
Adaptable
· Zoom-in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.
· The mil of the reticle can be zoomed in with the image, no conversion required, avoid errors.
· With multi-user customized settings, parameter information of an array of reticles can be saved to match different rifles.
Rugged and Durable
· IP67 degree of protection, waterproof and dustproof, high shock resistance, no fears of harsh weather.
| Model | TS425 | TS435 | TS450 |
| Detector | |||
| Detector Type | 400×300 @17μm, Vox | ||
| Spectral | 8μm～14μm | ||
| NETD | ≤50mk | ||
| Lens | |||
| Focal Length | 25mm F1.1 | 35mm F1.2 | 50mm F1.2 |
| Focusing | Manual Focus | ||
| FOV | 14.9°×11.2° | 10.7°×8.0° | 7.5°×5.6° |
| Display | |||
| Display | Color 0.39-inch OLED Display, 1024×768 | ||
| Eyepiece | Exit pupil distance 48mm, eyepiece magnification 14× | ||
| Magnification | 1.6~6.4× | 2.3~9.2× | 3.3~13.2× |
| Video Output System | PAL 50Hz | ||
| External Video Display | Full color video output by external interface, with menu | ||
| Imaging | |||
| Frame Rate | 50Hz | ||
| Digital Zoom | 2×,4× | ||
| Color Palettes | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot | ||
| Picture-in-picture | On/off,the position is adjustable | ||
| Functions | |||
| hotspot tracking | Yes | ||
| Compensation Modes | Auto Compensation / Shutter Compensation / Scene Compensation | ||
| Calibration | 25m/50m/100m | ||
| Stadiametric rangefinder | 1.8m/0.5m/0.25m | ||
| Gun Types Selection | 6 Types | ||
| Power Supply | |||
| Battery Type | Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device | ||
| Battery Operating Time | ≥3H(Standard low temp battery,Observation status only) | ||
| ≥5H(Panasonic 3400mah standard 18650 battery,Observation status only) | |||
| Interface | |||
| Video Interface | Lemo | ||
| Environmental Characteristics | |||
| Operating Temperature | -40℃-50℃ | ||
| Shock | 500G/1ms | ||
| Encapsulation | IP67 | ||
| Certificate | RoHS,CE | ||
| Weight & Dimensions | |||
| Weight(excl battery) | 660g | 660g | 720g |
| Dimensions | 230mm×90mm×75mm | 230mm×90mm×75mm | 250mm×90mm×75mm |
| Package Contents | |||
| Standard | Lens cap,battery,Charger,Video cable, Pick-up gun rack,Hard transport case,User Manual |
||
| Detection Range | |||
| Human:1.8m×0.5m | 700m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 1700m | 2400m | 3000m |
| Recognition Range | |||
| Human:1.8m×0.5m | 350m | 500m | 700m |
| Vehicle:2.3m×2.3m | 700m | 1000m | 1400m |
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
