Product Details:
Payment & Shipping Terms:
|
| Material: | TPU | Color: | Black |
|---|---|---|---|
| Net Weight: | 510g | Power Supply: | 1 CR123 Batteries |
| Service: | OEM / ODM | HS Code: | 9004909000 |
| High Light: | IR516 Handheld Thermal Binoculars,IR516 First Response Thermal Binoculars,ergonomic Handheld Thermal Binoculars |
||

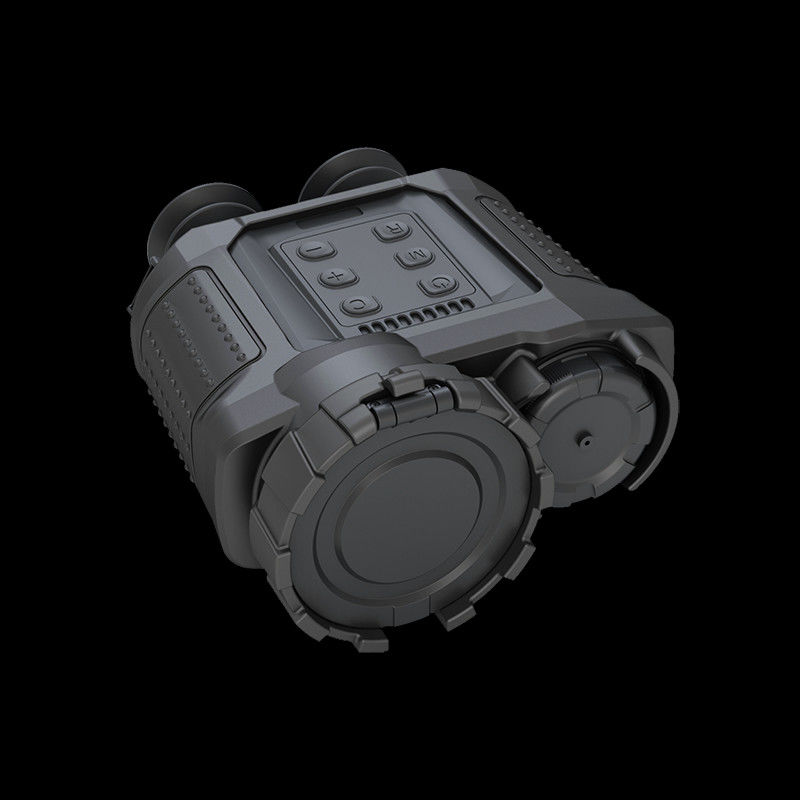

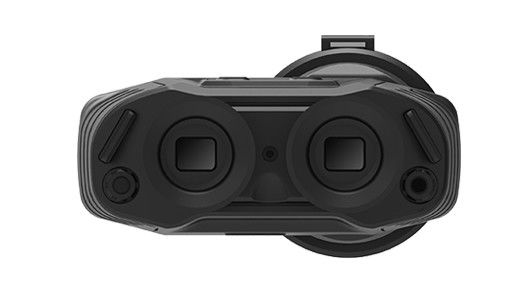

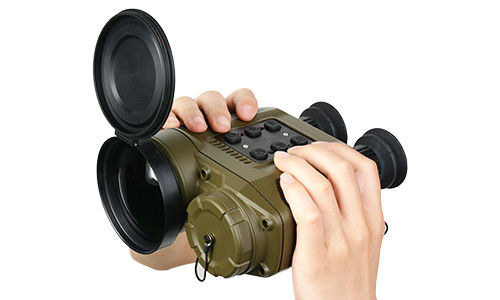

IR516 Series Handheld Thermal Binoculars Search And RescueLaw EnforcementFirefighting First ResponseMaritime Resuce
· Binocular display, can be contacted with external display device
· It's easy to carry and use with its ergonomic design
· Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
· With the integrating function of taking photo, video and reviewing, which can be output by USB
· Identity and track the hottest spot with auto-focusing mode
|
Type |
IR516A |
IR516B |
|
Detector |
||
|
Detector Resolution |
400×300,17μm |
800×600,17μm |
|
Spectral Range |
8μm～14μm |
8μm～14μm |
|
Lens |
||
|
Focus |
70mm |
|
|
FOV |
5.6°×4.2°(±5%) |
11.1°×8.31°(±5%) |
|
Working Range |
Detection Range |
Recognition Range |
|
1.8m×0.5m Human |
>2km |
>1km |
|
2.3m×2.3m Vehicle |
>3.3km |
>1.9km |
|
Image |
||
|
Image Enhancement |
Auto image filtering and sharp |
|
|
Brightness/Contrast |
Auto/Manual |
|
|
Polarity |
White-hot/black-hot,palette |
|
|
Digital Zoom |
2× |
|
|
Video Storage |
Built-in 16G SD card |
|
|
View Finder |
OLED 1280×1024, visual acuity |
|
|
Interface |
||
|
Electrical Interface |
power,video PAL(NTSC can customizable),communication RS232 |
|
|
Mechanical Interface |
1/4 inch standard interface |
|
|
Power |
||
|
Power Input |
12V power adapter or built-in Li-ion battery |
|
|
Continuous Working Time By Battery |
≥4h(without changing battery) |
|
|
Environment Parameters |
||
|
Working Temperature |
－40℃～60℃(Except for display equipment) |
|
|
Encapsulation |
IP67 |
|
|
Electromagnetic Compatibility |
GJB151A-97 |
|
|
Physical Characteristics |
||
|
Weight |
≤1.5kg(including battery) |
|
|
Size |
≤210mm×170mm×100mm |
|
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
