TA435/TA450 Clip-On Thermal Imaging Attachment Personal Vision System Outdoor Recreation

Large Image : TA435/TA450 Clip-On Thermal Imaging Attachment Personal Vision System Outdoor Recreation

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFORM
Certification:	CE, FDA, CSA, DROP BALL TEST
Model Number:	AUTC-TA435/TA450

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton box, 50pcs/ctn
Delivery Time:	30-35 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000PCS/Month

Contact Now

Detailed Product Description

Material:	TPU	Color:	Black
Net Weight:	510g	Power Supply:	1 CR123 Batteries
Service:	OEM / ODM	HS Code:	9004909000
Highlight:	TA450 Thermal Imaging Attachment , TA435 Thermal Imaging Attachment , Clip On Thermal Imaging Attachment

TA435/TA450 Clip-On Thermal Imaging Attachment Search And RescueLaw EnforcementPersonal Vision SystemOutdoor Recreation

Application field: Search and RescueLaw enforcementPersonal Vision SystemOutdoor recreation

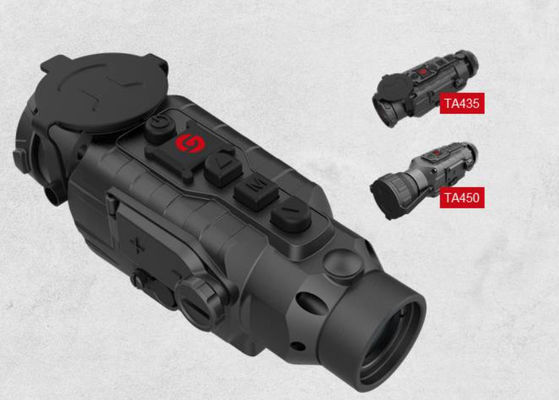

Guide TA Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager.It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.

This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.

Model	TA435	TA450
Detector
Detector Type	400×300 @17μm, VOx
Spectral	8μm～14μm
NETD	≤50mk
Focus lens
Focal Length	35mm F1.2	50mm F1.2
Focusing	Manual focus
FOV	10.66°×8.0°	7.5°×5.6°
Display system
OLED	Colorful 0.39 inch OLED screen 1024×768
Eyepiece	Monocular, Pupil Distance 10mm, Pupil Caliber 20mm
Digital Zoom	1
Image Processing
Frame Rate	50Hz(PAL)
Digital Zoom	2×,4×
Auto Tracking	Hotspot track
Calibration	Automatic calibration/ Manual calibration (shutter) /Manual scene compensation
Scenes Modes	Enhanced, Highlight, Natural
Color Palettes	Black hot, white hot, red hot, green hot
Contrast/Brightness	Adjustable
Power Systems
Battery	CR123A×2/ICR16340×2
Power Supply	can be powered by 5V2A external power supply
Working Time	Continuous Operating over 3 hours@25°C
Interface
7-Pin LEMO Interface	Support video output and external power supply
Environment parameter
Operating Temperature	-30°C-50°C
StorageTemperature	-45°C-70°C
Humidity	Working and storage10% ～ 95%, Non condensing
Impact	500G/1ms
IP level	IP67
Certificate	RoHS Certificate/CE Certificate/FCC Certificate
Physical Characteristics
Weight	≤400g	≤450g
Size	150mm×52mm×57mm	178mm×58mm×62mm
Package
Standard	Blinder, Carrying bag,Charger, User manual, 7-Pin Lemo to USB cable, Warranty
Optional	External eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery,Bluetooth remote controller, Picatinny rail, Charger, Video cable (two in one, power supply & video output)

Certifications

Exhibition

Packing & Delivery

1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
