Product Details:
Payment & Shipping Terms:
|
| Material: | TPU | Color: | Black |
|---|---|---|---|
| Net Weight: | 510g | Power Supply: | 1 CR123 Batteries |
| Service: | OEM / ODM | HS Code: | 9004909000 |
| High Light: | TrackIR Thermal Imaging Monocular,TrackIR Handheld Imaging Monocular,TPU Thermal Imaging Monocular |
||

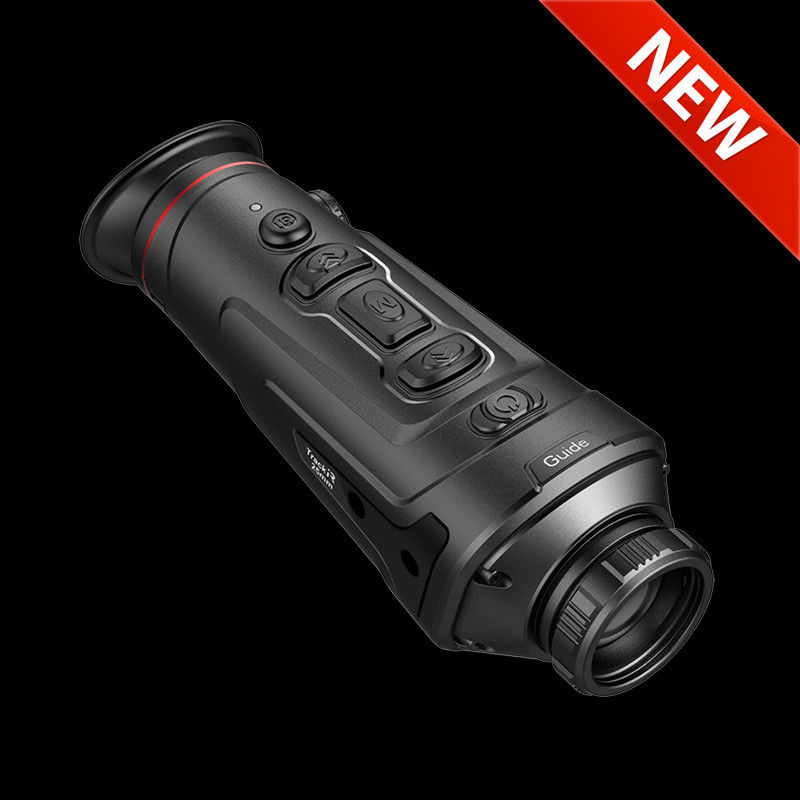

TrackIR Handheld Thermal Imaging Monocular Personal Vision System/Outdoor Recreation
| Model | TrackIR Series | TrackIR Pro Series | ||||
| TrackIR 25mm | TrackIR 35mm | TrackIR 50mm | TrackIR Pro 19mm | TrackIR Pro 25mm | TrackIR Pro 35mm | |
| Detector | ||||||
| Detector Type | 400×300 @17μm, VOx | 640×480@12μm, VOx | ||||
| Spectral | 8μm～14μm | 8μm～14μm | ||||
| NETD | ≤50mk | |||||
| Lens | ||||||
| Focal Length | 25mm/F1.1 | 35mm/F1.2 | 50mm/F1.2 | 19mm F1.0 | 25mm F1.0 | 35mm F1.0 |
| Focusing | Manual Focus | |||||
| FOV | 15.4°×11.6° | 11.1°×8.3° | 7.8°×5.8° | 22.9×17.2 | 17.5×13.1 | 12.5×9.4 |
| Display | ||||||
| Screen | 1280×960 , 0.4 inch,Color LCOS Display (Feel like watching 22 inch screen at 1 meter) | |||||
| Eyepiece | Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2 | |||||
| Magnification | 1.7~6.8 | 2.3~9.2 | 3.3~13.2 | 1.1—8.8X | 1.5—12X | 2.0—16X |
| Imaging | ||||||
| Frame Rate | 50Hz | |||||
| Digital Zoom | 1X~4X (Smooth zoom) | 1X~8X (Smooth zoom) | ||||
| Color Palettes | White Hot, Black Hot, Iron Red, Blue Hot, Red Hot (TrackIR PRO: Adjustable Red Hot) | |||||
| Scenes Modes | Enhanced, Highlignt, Natural | |||||
| Picture-in-picture | Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right | |||||
| Functions | ||||||
| Photo | √ | √ | √ | √ | √ | √ |
| Video | √ | √ | √ | √ | √ | √ |
| Hotspot tracking | √ | √ | √ | √ | √ | √ |
| Stadiametric rangefinder | √ | √ | √ | √ | √ | √ |
| Wi-Fi/APP | Wi-Fi share photo and video, also can controlled by app(IOS & Android) | |||||
| Compensation Modes | Auto Compensation / Shutter Compensation / Scene Compensation | |||||
| Indicate Box | Red,/yellow/green, the coordinates of the indicate box is adjustable | |||||
| Other | image enhancement, brightness and contrast of image are adjustable, auto power-off, auto sleep, super power-save mode, the work indicator could be shut off |
|||||
| Power Supply | ||||||
| Battery Type | Internal Li-ion battery (2x18650, 6000mAh) | |||||
| Working Time | ≥5h | ≥4.5h | ||||

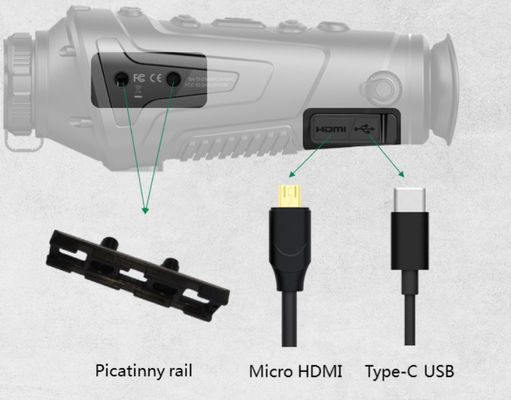

| Interface | ||||||
| USB | TYPE C (USB 2.0 standard ) for charging, data tranmission | |||||
| Video Output | Micro HDMI | |||||
| External Connection | External Connection by a Picatinny rail | |||||
| Memory Card | 16 GB | |||||
| Environmental Characteristics | ||||||
| Operating Temperature | -10℃～50℃ | |||||
| Storage Temperature | -30℃～60℃ | |||||

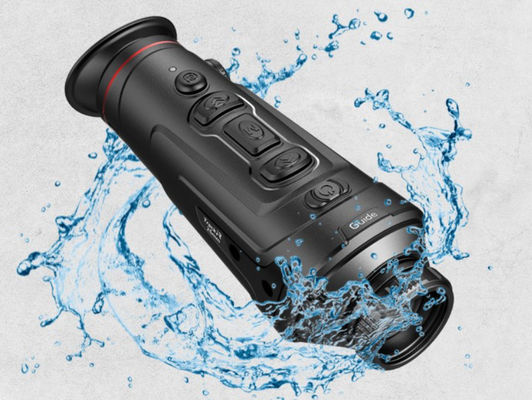

| Encapsulation | IP66,1-meter drop test | |||||
| Certificate | UN38.3 (Battery certificate), RoHS, CE, FCC, EAC | |||||
| Weight & Dimensions | ||||||
| Weight | 470g | 485g | 535g | 490g | 490g | 560g |
| Dimensions | 192×65×71 | 214×65×71 | 192×65×71 | 214x65x71 | ||
| Package Contents | ||||||
| Standard | Power adapter,USB cable,Micro HDMI cable,Lens cover,Wrist strap, Shoulder strap,Lining package,Quick Start Guide |
|||||
| Optional | External Picatinny rail, External screen and etc… | |||||

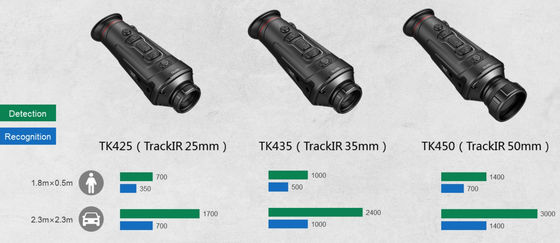

| Detection Range | ||||||
| Human:1.8m×0.5m | 700m | 1000m | 1400m | 800m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 1700m | 2400m | 3000m | 1850m | 2400m | 2800m |
| Recognition Range | ||||||
| Human:1.8m×0.5m | 350m | 500m | 700m | 400m | 500m | 700m |
| Vehicle:2.3m×2.3m | 700m | 1000m | 1400m | 800m | 1000m | 1400m |
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
